VideoSecu Full Motion TV Wall Mount for VIZIO 40-70" LED Plasma D40f-E1 D40n-E3 D43-E2 D43n-E1 D48f-E0 D50n-E1 D50u-D1 D55-E0 E55-E1 P55-E1 E60-E3 D65-E0 M65-D0 M65-E0 P65-E1 E70-E3 M70-E3 b09
4.8 (121 items)
Limited Time Sale$44.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 230611677 | Release Date | 2026/06/18 | List Price | $30.00 | Model Number | 230611677 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description: The VideoSecu articulating heavy duty TV wall mount fits most 39-70" LED LCD Plasma flat panel screen, some LED up to 80" with mounting hole patterns up to 684x400mm. This TV mount is constructed with thick high grade steel providing security and stability. Adjustable tilt, swivel, rotate and extension place your TV in multiple viewing angles.
- Heavy duty sturdy mount, mounting hole patterns 684x400/600x400/400x400/400x300/300x300/200x200mm
- Post-installation level adjustment

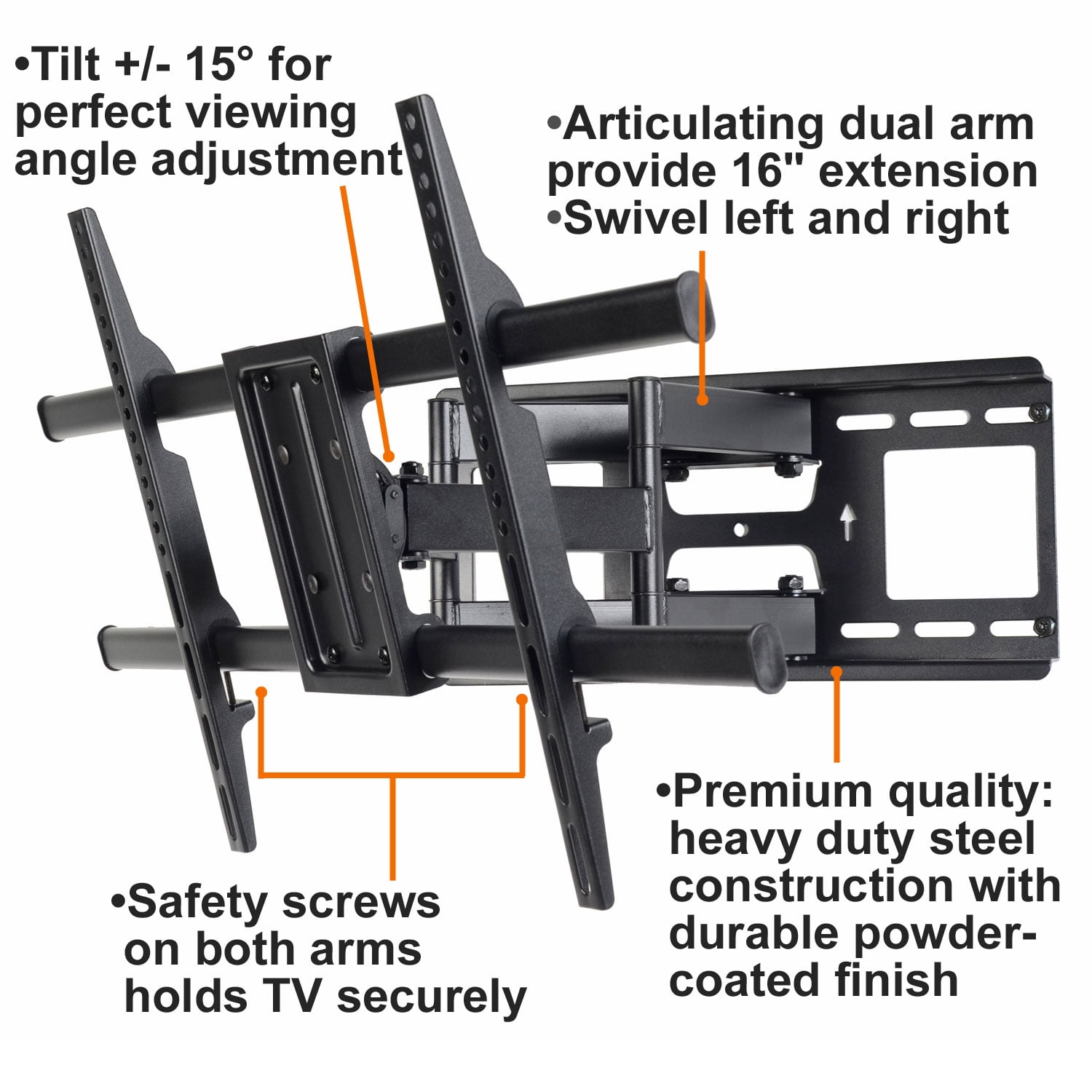

- Premium quality - heavy duty steel construction with durable powder-coated in black finish
- Multi-directional adjustment tilt, swivel and extend for perfect viewing angle
- Safety screws on both arms secure the display in position for additional security
- Premium quality - heavy duty steel construction with durable powder-coated black finish
- Multi-directional adjustment tilt, swivel and extend for perfect viewing angle
- Post-installation level adjustment allows the TV to perfectly level
- Integrated cable management design on articulating arm keep wires out of the way
- Nesting arm design allows display to be folded parallel to wall to save place
Specification:
- Fits most 39 - 70 inch LED LCD Plasma TV displays, some LED up to 80 inch (Please check mounting hole patterns and weight)

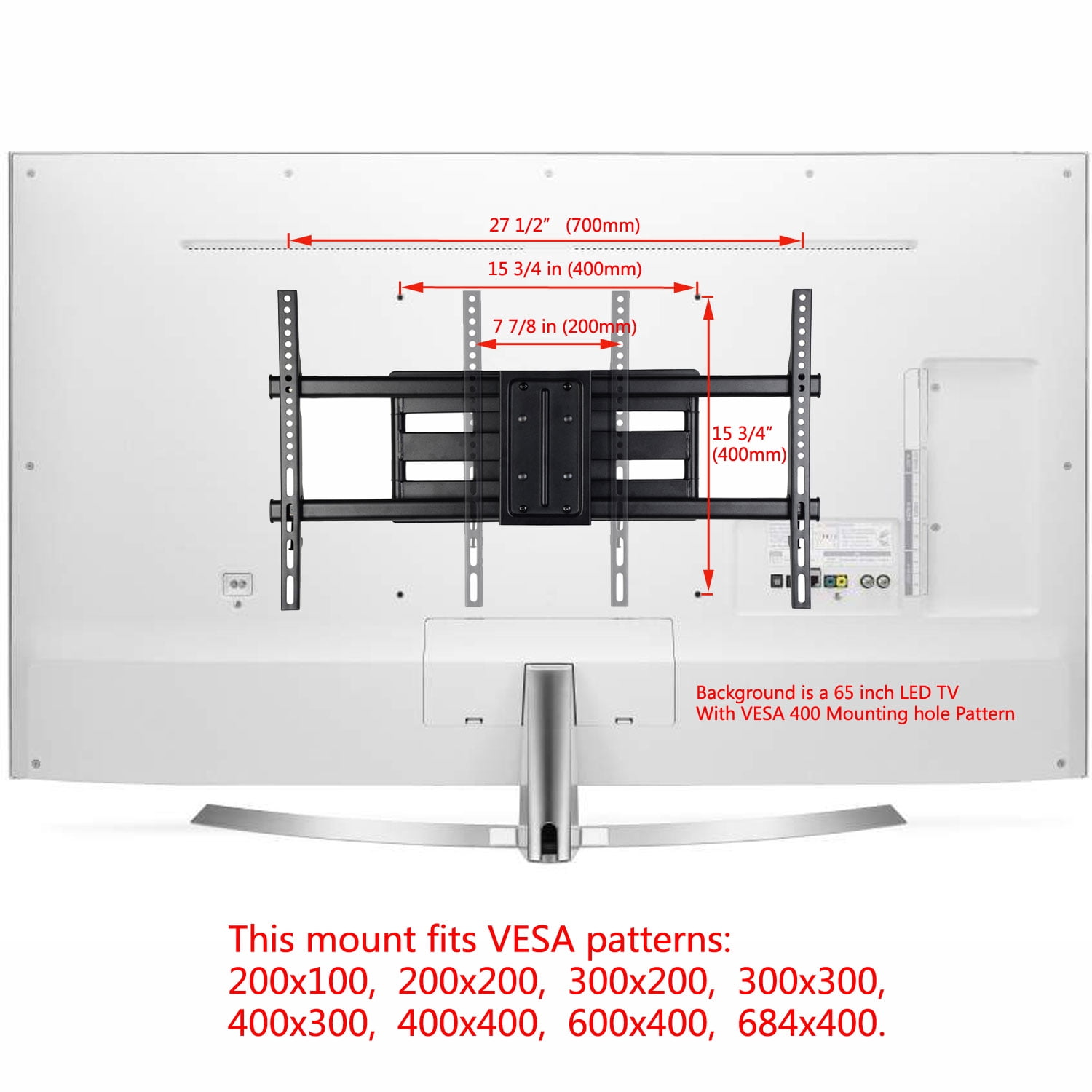

- Fits mounting hole patterns 684x400/ 684x300/ 600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole patterns within 200-684mm wide and 100-400mm high
- Loading capacity up to 125lbs/56.7kg

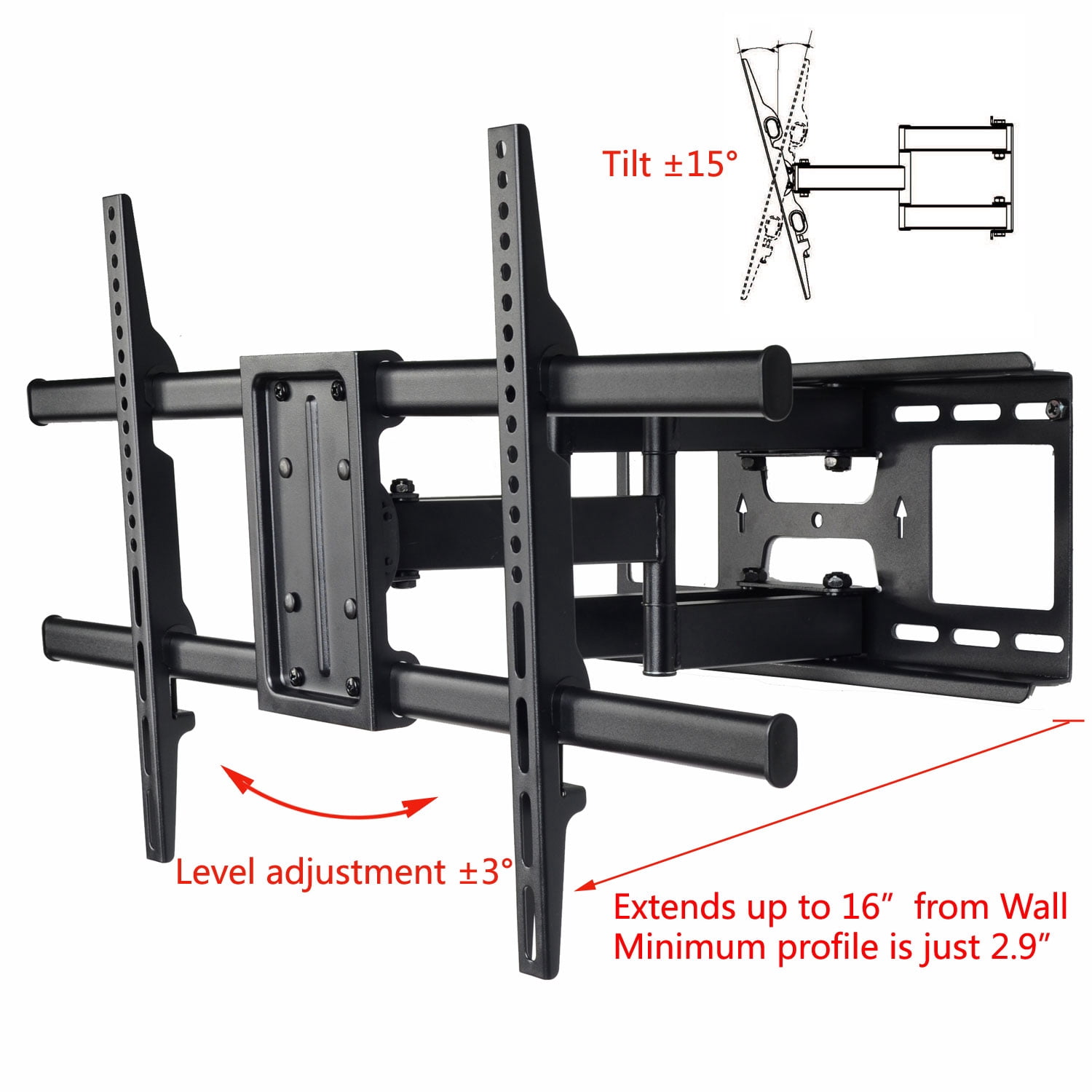

- Adjustable 15 degrees tilt forward or backward for perfect viewing angle
- Rotate 6 degrees for level adjustment
- Swivel left and right for comfortable view angle in different positions (depending on TV size)

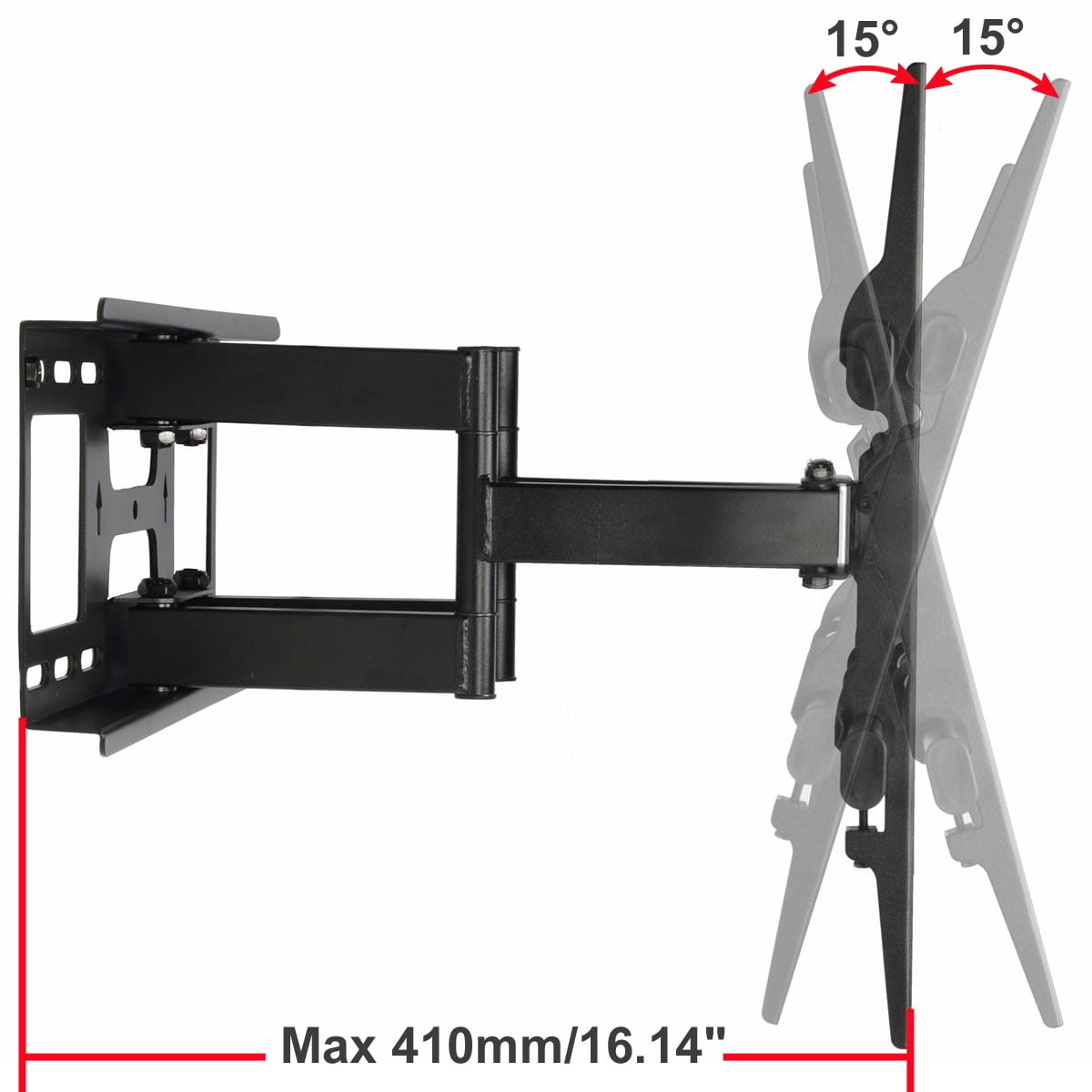

- Extension & Depth: the mount pulls out up to 16 inch from the wall or folds parallel to the wall less than 3 inch to save space
- Fits 16 inch apart wood studs
- Wall plate dimension: 428x213mm (16.9"x8.4")
Package contents:
TV wall mount, HDMI cable, standard mounting hardware, user manual
Please check whether the mount is suitable for your TV:
| Screen size | 70 |
|---|---|
| Max load | 125 lb |
| Mount pattern | 600 x 400, 400 x 400, 600 x 300, 400 x 300, 600 x 200, 400 x 200, 300 x 300, 600 x 100, 400 x 100, 300 x 200, 200 x 200, 300 x 100, 200 x 100 |
| Mount type | Wall Mount |
| Tv & monitor mount type | Full-Motion Mounts |
| Tilt angle | 15 º |
| Minimum screen size | 39" |
| Material | Steel |
| Brand | VideoSecu |
| Color | Black |
| Finish | Powder-coated |
| Weight | 23 lb |
| Maximum depth | 16 in |
| Height | 16 in |
| Accessories | HDMI cable, standard mounting hardware, user manual |
| Has written warranty | No |
| Model | WAMW380B3-B0 |
